Traffic Simulation with TransModeler

Traffic Simulation Models

TransModeler is a versatile traffic simulator with many advanced features including support for key aspects of Intelligent Transportation Systems. TransModeler simulates a wide variety of facility types, including mixed urban and freeway networks, and can be applied to specific geographic areas such as downtowns, highway corridors, or beltways.

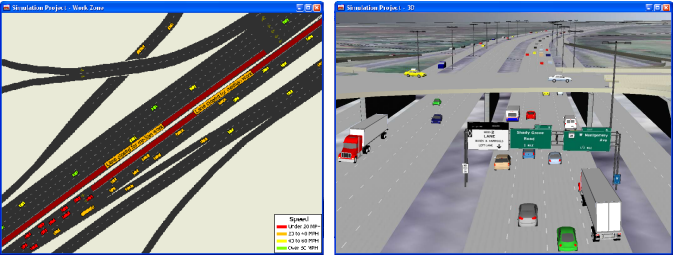

• Model freeway and urban networks in the same network with driver behavior models that are sensitive to complex inter-vehicle interactions in merging areas and intersections
• Model rotaries with driver behavior models that capture the unique interactions between vehicles entering and vehicles inside the rotary
• Model high occupancy vehicle (HOV) lanes, bus lanes and toll facilities to better understand their effects on traffic system dynamics
• Model evacuation plans and scenarios for response to natural disasters, hazardous spills, and other emergencies

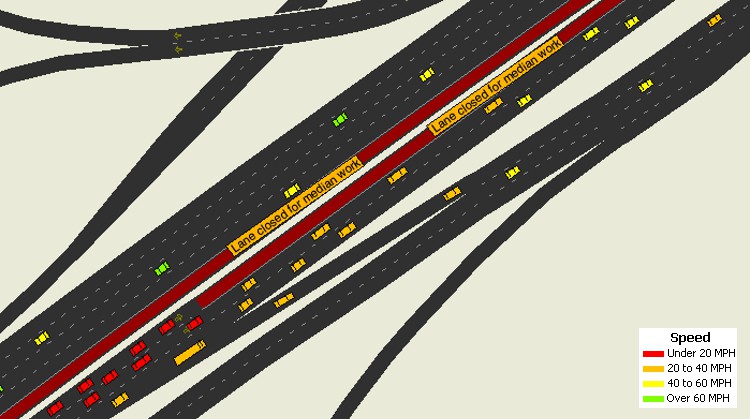

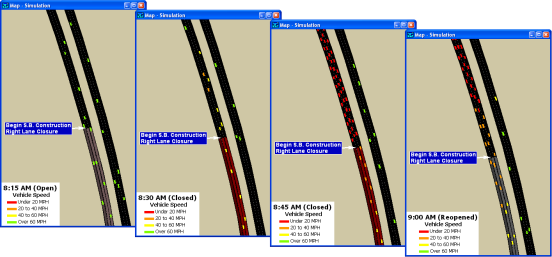

• Model work zones to manage traffic during construction and maintenance projects

Toll facilities:

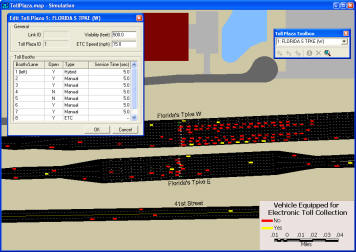

TransModeler simulates toll plaza operations, including those with various payment methods and high-occupancy toll (HOT) lane facilities. Easily modified service time parameters allow you to model any type of toll payment technology including electronic toll collection facilities. Easily defined pricing schemes that can very based on vehicle occupancy, time of day, or prevailing traffic conditions allow you to simulate HOT facilities. TransModeler also evaluates driver behavior parameters such as value of time and cost sensitivity in route choice decision making.

• Simulate complex lane choice and other driver behavior phenomena at toll plazas with electronic, manual, and hybrid payment booths
• Vary service times at toll plazas by booth and by vehicle type
• Simulate the impacts on traffic operations of electronic toll collection facilities and booth closures
• Model the economic and operational impacts of various toll lane pricing strategies
• Predict HOT lane revenue and utilization under alternative scenarios

Microscopic Simulation

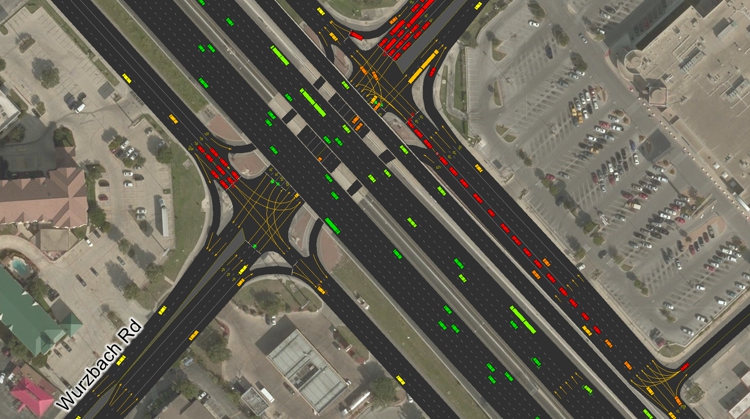

When used as a microscopic simulator, TransModeler simulates the behavior of each vehicle every one-tenth of a second. Vehicles can vary in terms of their physical and performance characteristics, and can be custom defined by users. Acceleration, deceleration, car-following, lane-changing, merging/yielding, and movements at intersections are simulated in detail and are affected by driver aggressiveness, vehicle characteristics, and road geometry. While default settings are provided for important behavioral models, users can easily change the parameters of these models.

On-Street Parking

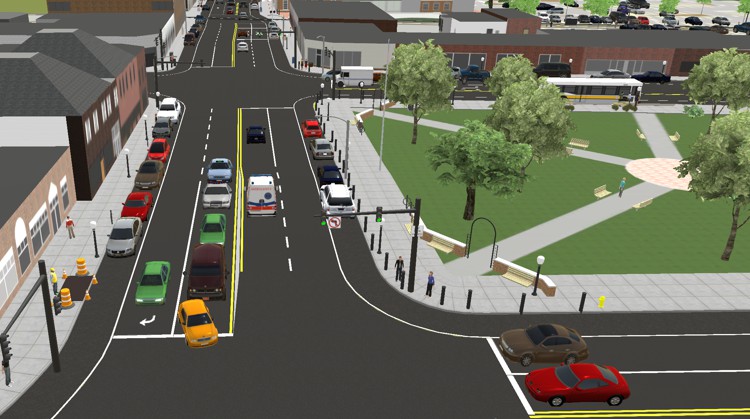

Most traffic simulators that attempt to address parking fail to account for the underlying behavior. TransModeler simulates the search for an available parking space at a driver's destination, as well as the continued pursuit of a space when all parking spaces are occupied, thus modeling the true impacts of on-street parking in urban areas. Furthermore, TransModeler accounts for the effects on traffic flow as vehicles maneuver in and out of angled, parallel, or perpendicular parking spaces.

Dynamic Traffic Assignment

Unlike traditional simulators that require turning movements as inputs, TransModeler can also determine vehicle routes using dynamic traffic assignment of origin-destination trip tables. Travel times by time period and network segment can be input from external data or developed by running traffic assignments and traffic simulations. User Equilibrium DTA is one of the options provided. Vehicle paths can also be input from external files including those generated by TransCAD and/or created or edited by analysts. When unexpected delays occur, some drivers will change their routes during their trips. This can be in response to message signs or to unexpectedly high levels of congestion.

Mesoscopic and Macroscopic Simulation

TransModeler can also simulate wide area networks at varying levels of fidelity and with different simulation methods. TransModeler includes mesoscopic and macroscopic simulators in addition to its microscopic simulator. In the mesoscopic simulator, vehicles are collected into traffic cells and streams and their movements are based upon predefined capacities and speed-density functions. Individual vehicles are represented, but their movements are based on aggregated speed-density functions rather than car-following and lane-changing logic. In the macroscopic simulator, vehicle movements are based upon volume delay functions that depend upon the functional class of the road system.

Hybrid Simulation

TransModeler is unique in that it provides a hybrid simulation capability in which high fidelity microsimulation can be intermixed at will with mesoscopic and macroscopic simulation on any network segments. Portions of the network of greatest interest can be simulated with microsimulation and other portions can be simulated with less detailed methods. This hybrid capability makes it possible to simulate very large networks with modest computing power.

Traffic Control

TransModeler simulates traffic signals and a variety of Intelligent Transportation Systems (ITS) applications.

Traffic Signals:

When you need to understand how traffic signal operations impact the adjacent intersections in the network, simulation is the only option. Simulation is especially important in oversaturated conditions in which queues may spill back to upstream intersections or disrupt the arrival patterns of traffic between intersections, phenomena that are not well accounted for in traditional methods employed by other signal optimization software.

TransModeler simulates a wide range of traffic signal controls:

• Simulate common traffic signal systems, including pretimed and traffic actuated signal control
• Simulate more complex traffic signal control systems, including coordinated and coordinated actuated control
• Model transit signal priority and queue-jumping strategies for bus, rapid transit, or other public transportation services
• Model signal preemption strategies for transit or emergency vehicle applications
• Evaluate signal warrants and generate timing plans based on turning movement volume tables
• Apply customizable templates to create actuated signal controllers, either based on ring & barrier concept or phase group diagrams

ITS Applications:

TransModeler is capable of simulating driver response to a wide variety of traffic control and information devices for Intelligent Transportation Systems applications.

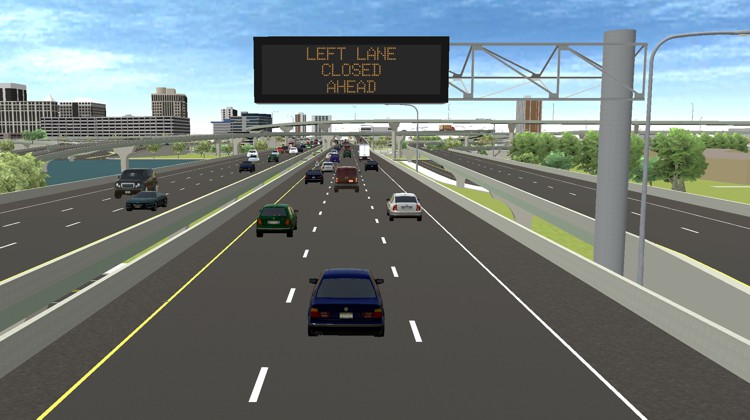

• Model lane use signs and flexible variable message signs directed at trucks, transit vehicles, and other classes of vehicles
• Simulate the impact of variable speed limit signs on traffic flow
• Evaluate the effects of ramp metering on freeway ramp and adjacent urban street operation
• Simulate the impact of real-time traffic information on dynamic driver rerouting
• Evaluate dynamic congestion pricing measures and HOT lanes

Public Transit Simulation

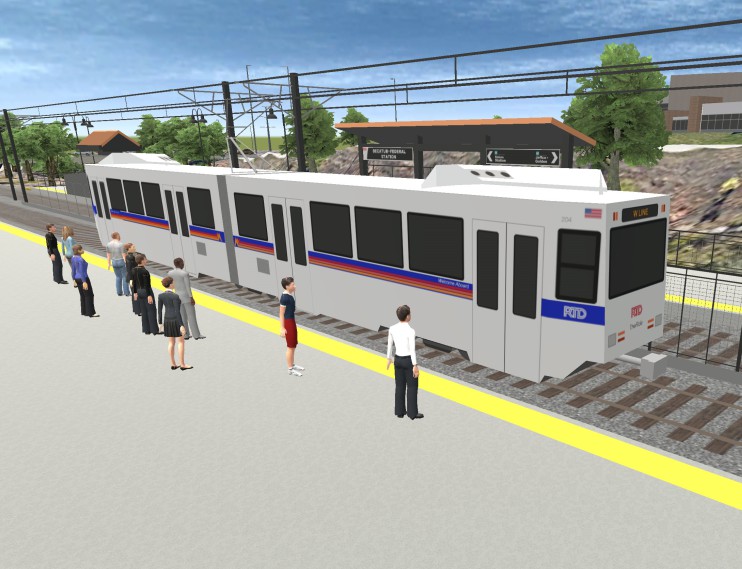

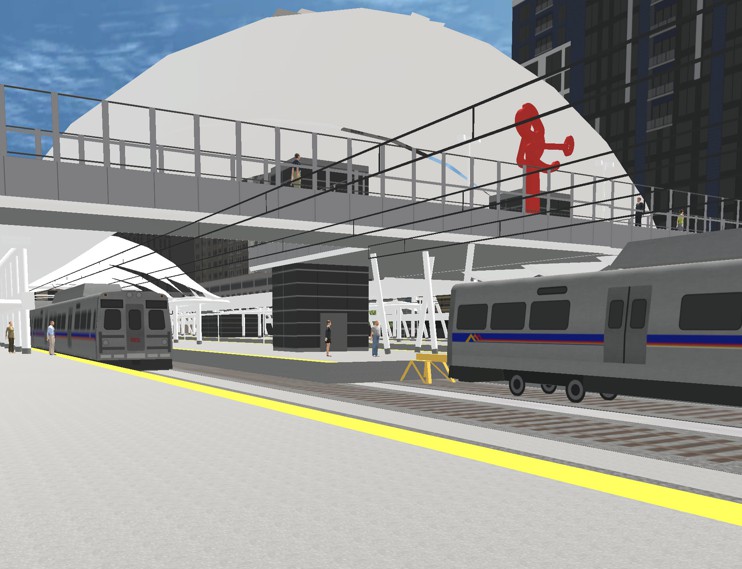

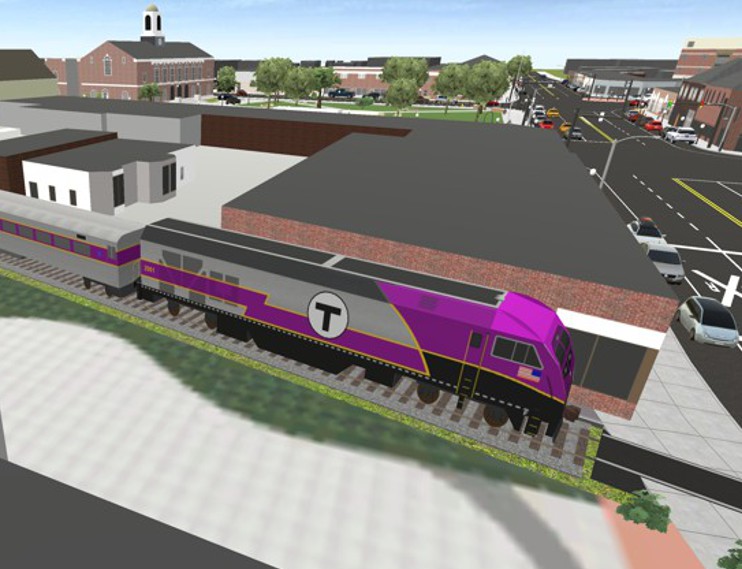

TransModeler is a multimodal simulator. With TransModeler you can simulate bus and rail transit systems with frequency or schedule-based service.

• Create, edit, and maintain transit routes and stops in a geographic database joined to open relational attribute tables
• Define route headways and headway variability for simulating frequent, headway-based transit services
• Define transit schedules for simulating schedule-based service
• Assign dwell time parameters and seating and standing room capacities to transit vehicle classes

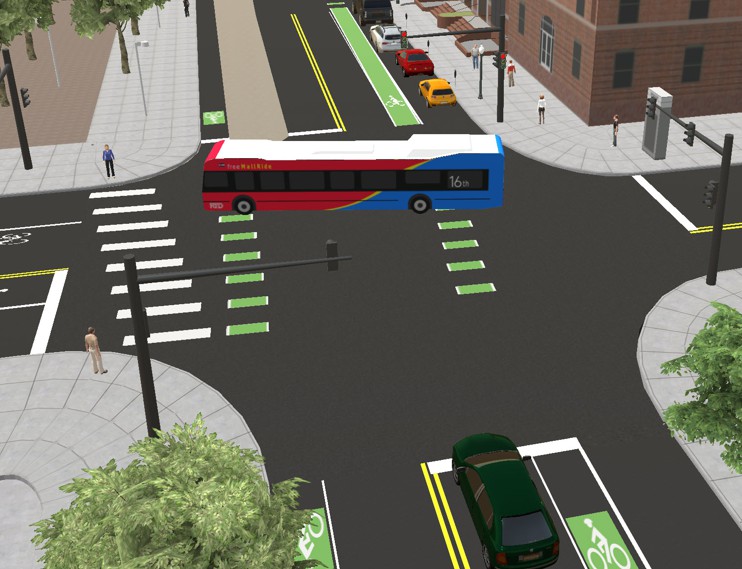

• Simulate BRT, exclusive bus lanes, signal priority, and queue jumping
• Report schedule adherence and reliability measures as well as ridership statistics
